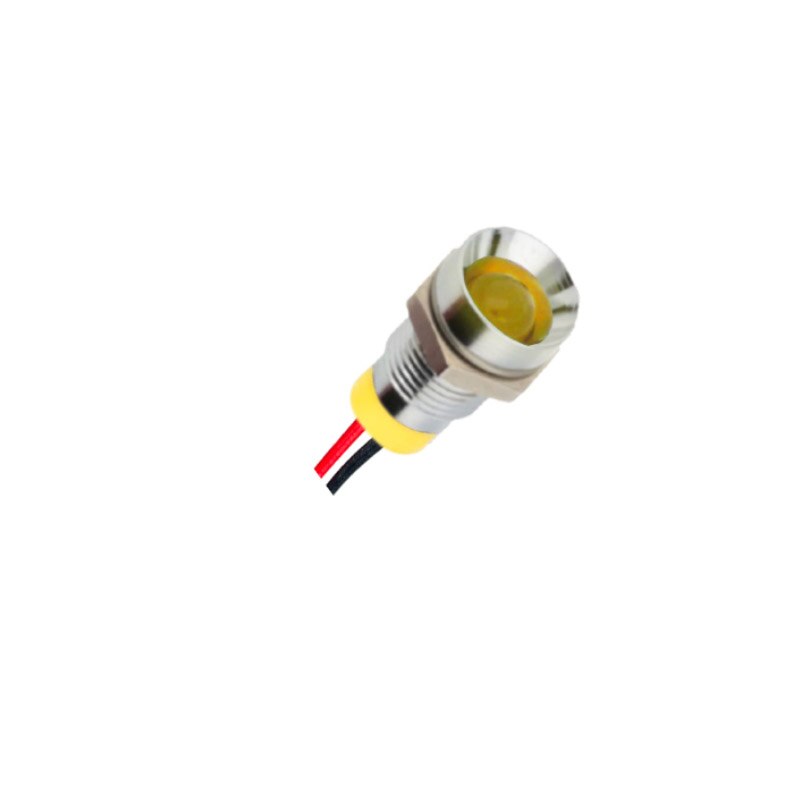

Q8R7CXXY02E
The Q8R7CXXY02E LED Indicator is a versatile and reliable product that is perfect for a range of applications. With its 8 mm Mounting Hole, it can be easily installed in various equipment. The Recessed Bezel Style adds a sleek and modern touch to any design. The Indicator features Short body Wires for convenient connections. Its Bright Chrome Bezel Finish gives it a polished and professional look. The Fixed Light Type Of Illumination ensures consistent and clear visibility. With its Yellow LED Color, it provides a vibrant and eye-catching display. The Indicator operates at a stable Voltage with no resistor required. Additionally, its IP67 Sealing ensures protection against dust and water, making it suitable for both indoor and outdoor use. Trust the Q8R7CXXY02E LED Indicator to deliver exceptional performance and durability.
Key Features
- Mounting Hole: 8 mm
- Led Colour: Yellow
- Voltage: No Resistor
- Sealing: IP67
- Terminals: Short Body Wires
- Bezel Finish: Bright Chrome
- Type Of Illumination: Fixed Light
- Bezel Style: Recessed
Specifications
Distinctive Features:
- 5mm colored diffused epoxy lens or 5 mm water clear
- super bright LEDs
- Prominent, recessed and flush bezel styles
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)
- wire terminations (2.0 x 0.5) solder lug/faston terminals on
- tri-color versions
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 20 to 25 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
