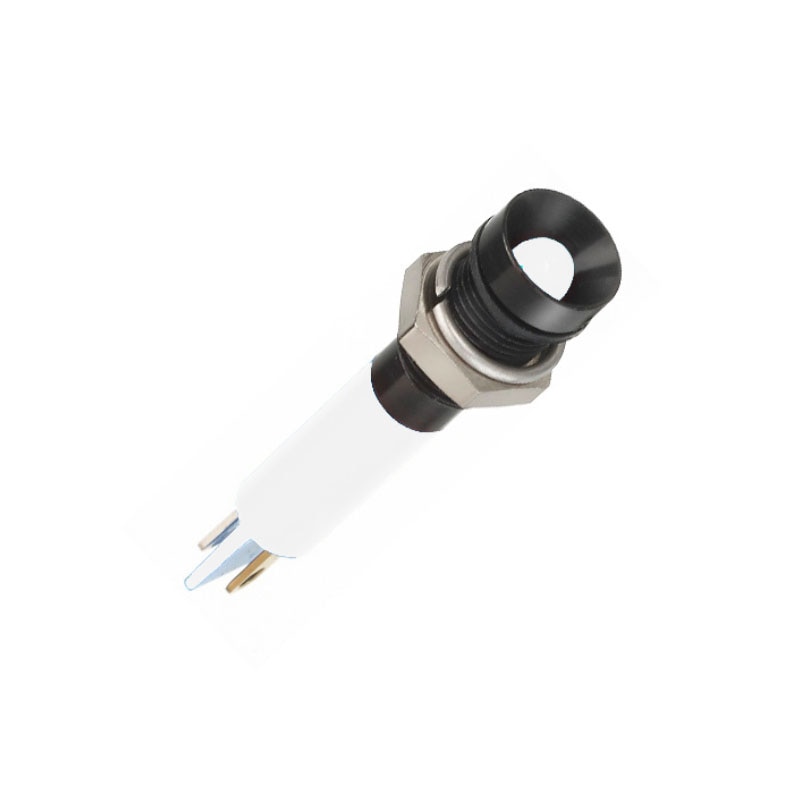

Q8R1GXXW12E
Introducing the Q8R1GXXW12E LED Indicator, a sleek and versatile addition to any electronic project. With its 8mm Mounting Hole, it's easy to integrate into your design. The Recessed Bezel Style adds a touch of elegance, while the Satin Grey Bezel Finish complements any aesthetic. And with its Fixed Light Type Of Illumination, you can rely on a consistent and reliable glow. The White LED Color offers a clean and crisp illumination, perfect for visibility in any environment. Powered by a 12VDC Voltage, it provides a bright and efficient light source. Plus, with its IP67 Sealing, you can trust in its durability and resistance to dust and moisture. Upgrade your design with the Q8R1GXXW12E LED Indicator today!
Key Features
- Mounting Hole: 8 mm
- Led Colour: White
- Voltage: 12V DC
- Sealing: IP67
- Terminals: Solder Lug Fastons (2.8 x 0.8)
- Bezel Finish: Satin Grey
- Type Of Illumination: Fixed Light
- Bezel Style: Recessed
Specifications
Distinctive Features:
- 5mm colored diffused epoxy lens or 5 mm water clear
- super bright LEDs
- Prominent, recessed and flush bezel styles
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)
- wire terminations (2.0 x 0.5) solder lug/faston terminals on
- tri-color versions
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 20 to 25 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
