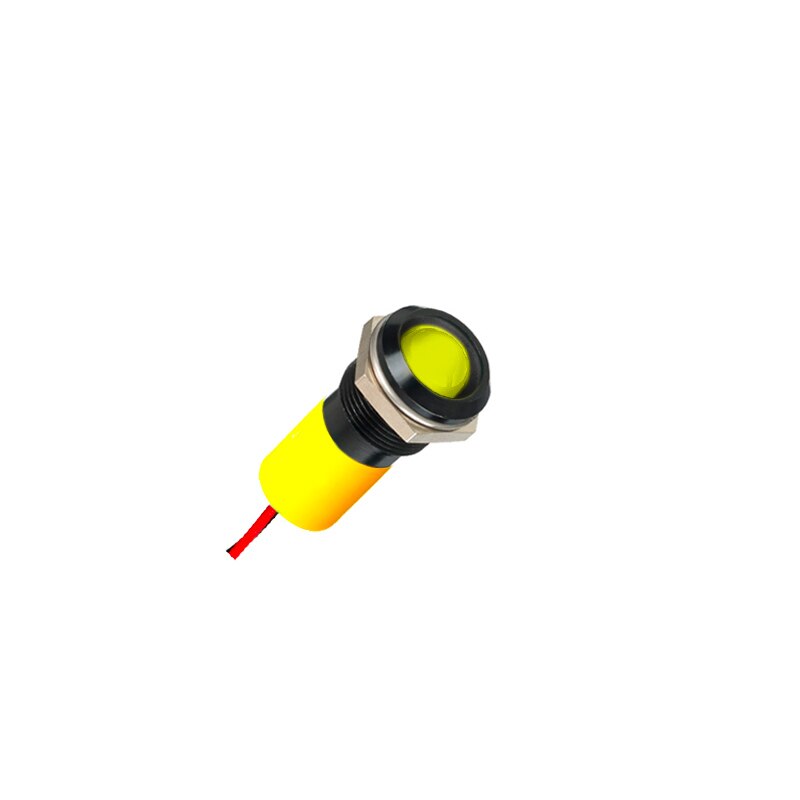

Q12P5BXXHY12E
Introducing the Q12P5BXXHY12E LED Indicator, a powerful and versatile device that will revolutionize your lighting experience. With its 12 mm Mounting Hole, installation has never been easier. The Prominent Bezel Style adds a touch of elegance to any application. The Rear epoxy Wires Terminals ensure a secure and reliable connection. The sleek Black Bezel Finish adds a modern and sophisticated look to your device. Illuminate your world with the Fixed LightKK Type Of Illumination. The Hyper Bright Yellow LED Color will captivate your audience. With a Voltage of 12 VDC, this LED Indicator is energy-efficient and long-lasting. And don't worry about water damage, because the IP67 Sealing keeps your device protected. Upgrade your lighting game with the Q12P5BXXHY12E LED Indicator.
![Q12P5BXXHY12E](/medias/Q12-prominent-black-solder-wires-yellow.jpg?context=bWFzdGVyfGNsb3VkaW1hZ2VzfDM0MjQ4fGltYWdlL2pwZWd8aDg4L2g3Ni85MjQ3ODI3MjMwNzUwL1ExMl9wcm9taW5lbnRfYmxhY2tfc29sZGVyX3dpcmVzX3llbGxvdy5qcGd8ZDMyNDUwMDRhMzZlZTFkMDEyODJlM2U4MWU2YTA4MTc5N2FmNjBhMzU3NDc5ZWJiYjBhZTE0Nzg4YWEzYWZjMQ)
Key Features
- Series: Q
- Sealing: IP67
- Voltage: 12 VDC
- Led Color: Hyper Bright Yellow
- Terminals: Rear epoxy Wires
- Bezel Style: Prominent
- Bezel Finish: Black
- Mounting Hole: Ø12 mm
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- 8 mm colored diffused epoxy lens or 8 mm water clear
- super bright LEDs
- 2VDC - 220VAC
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)
- wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
