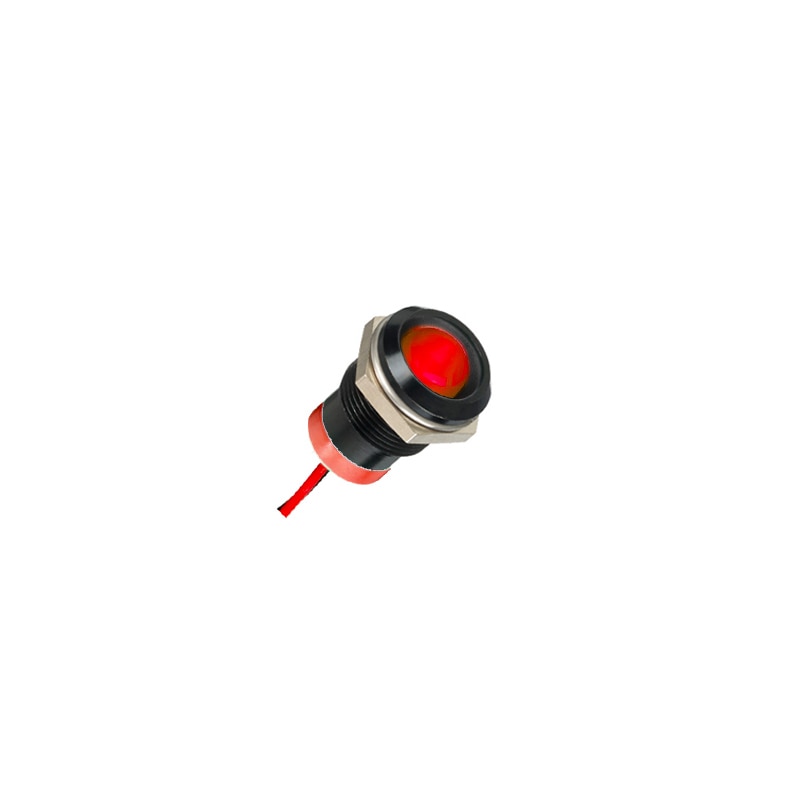

Q12-7P5BXXHR12E
The Q12-7P5BXXHR12E LED Indicator is a versatile and high-quality product that is sure to meet your needs. With its mounting hole diameter of 127 mm, it can easily be installed in various applications. The prominent bezel style adds a sleek and modern touch to any design. The rear epoxy wires make for easy and secure connections. The black bezel finish gives it a sleek and professional look. The fixed light illumination provides a steady and reliable source of light. The hyper bright red LED color ensures visibility even in bright conditions. With a voltage of 12 VDC, it is compatible with a wide range of power sources. Its IP67 sealing ensures protection against dust and water, making it suitable for both indoor and outdoor use.
![Q12-7P5BXXHR12E](/medias/Q12-prominent-black-shortbezel-wires-red.jpg?context=bWFzdGVyfGNsb3VkaW1hZ2VzfDMxOTg3fGltYWdlL2pwZWd8aDU4L2g3ZC85MjQ3ODI3MDM0MTQyL1ExMl9wcm9taW5lbnRfYmxhY2tfc2hvcnRiZXplbF93aXJlc19yZWQuanBnfDE0YjdhNTJjYTg5YzYzNTU5MmUwMDIzOWMxZmQ1YWI1ODI1NmIzMTI5ZDJmYjNjOWNkMDE5OTFlMDI1ZmExYzQ)
Key Features
- Series: Q
- Sealing: IP67
- Voltage: 12 VDC
- Bezel Style: Prominent
- Bezel Finish: Black
- Mounting Hole: 127
- Type Of Illumination: Fixed Light
- Led Color: Hyper Bright Red
- Terminals: Rear epoxy Wires
Specifications
Distinctive Features:
- 8 mm colored diffused epoxy lens or 8 mm water clearsuper bright LEDs
- 2VDC - 220VAC
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Mode
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
