XP0540R0102001AQUR5XXS001T00101

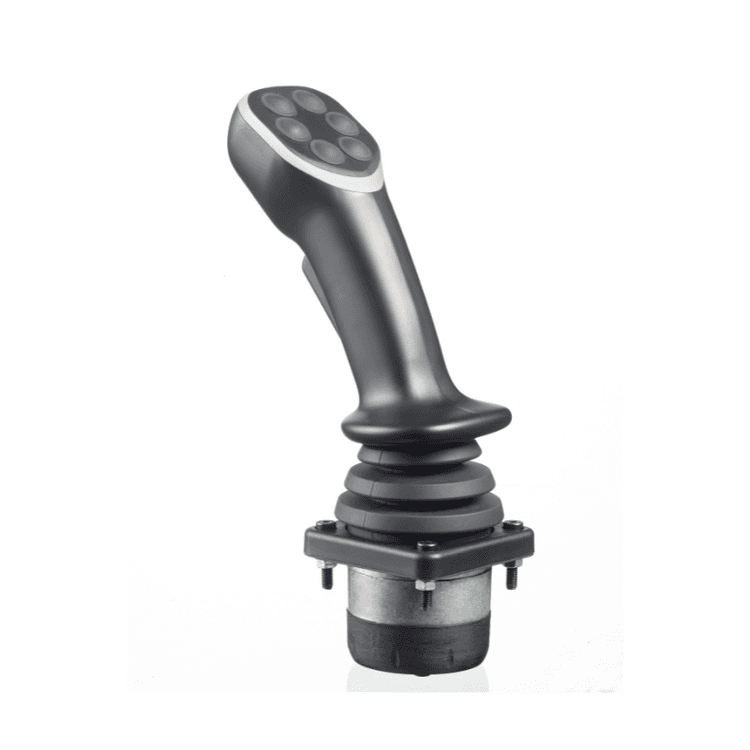

Introducing the XP0540R0102001AQUR5XXS001T00101 Joystick, a versatile and reliable control device for various applications. With its Mid-size Hall Effect category, it offers precise and accurate control, ensuring smooth and effortless operation. The Joystick features a Gain function, allowing users to adjust the sensitivity to their preference, providing optimal control for different tasks. Its Limiter feature adds an extra layer of safety, preventing accidental overreach and potential damage. The Operator Presence Paddle ensures that the Joystick is only activated when needed, enhancing safety and efficiency. The Bezel design, positioned below the panel, adds a sleek and modern touch to any equipment. With its standard central termination, installation becomes hassle-free. The Joystick's ergonomic handle, the UR type, offers comfort and ease of use, reducing operator fatigue during long hours of operation. Upgrade your control experience with the XP0540R0102001AQUR5XXS001T00101 Joystick.
Wesentliche Merkmale
- Serien: XP
- Gain: ±40%xV
- Gehäuse: Below
- Handle: Tall aluminium anodised
- Feature: haptic feedback
- Limiter: Runden
- Handle 1: UR
- Modifier: None
- Top plate: 1x HR series
- Guided feel: Guided feel
- Termination: Standard
- Configuration: PWM
- Person present: None
- Spring function: Standard sprung to center
- Top front switch: Gelb
- Side configuration: 1x HR series
- Left or right hand features: None
Spezifikationen
Allgemeine Spezifikation:
- All metal compact construction
- UR & MF handles
- Wrap around gaiter & Sealed electronics
- Analogue & CAN outputs
- Sealing: up to IP66 (above panel subject to handle and final specification)
- Two Axis Multi-function handle
- Mechanical life >10 Million life-cycles
- Weight: 100 g (3.53 oz) nominal
Umgebungsbedingungen:
- Operating Temperature: -30 °C to +70 °C ( -22°F to +158°F)
- Storage Temperature: -40 °C to +85 °C ( -40°F to +185°F)
- EMC Immunity Level: EN61000-4-3 (extended)
- EMC Emissions Level: EN61000-6-3:2001, CISPR 22:2005, Class B 30 MHz-11GHz
- ESD: EN61000-4-2 (extended)
Elektronische Spezifikationen:
- Analog Output Voltage Range: ±10% x V to ±50% x V
- Output at Center: V/2 ±(5% x gain)
- Power Supply: 5 V ±0.5 V transient free 3.3 V ±0.1 V
- Output impedance: 10 Ω
- Over-voltage max: +20 V
