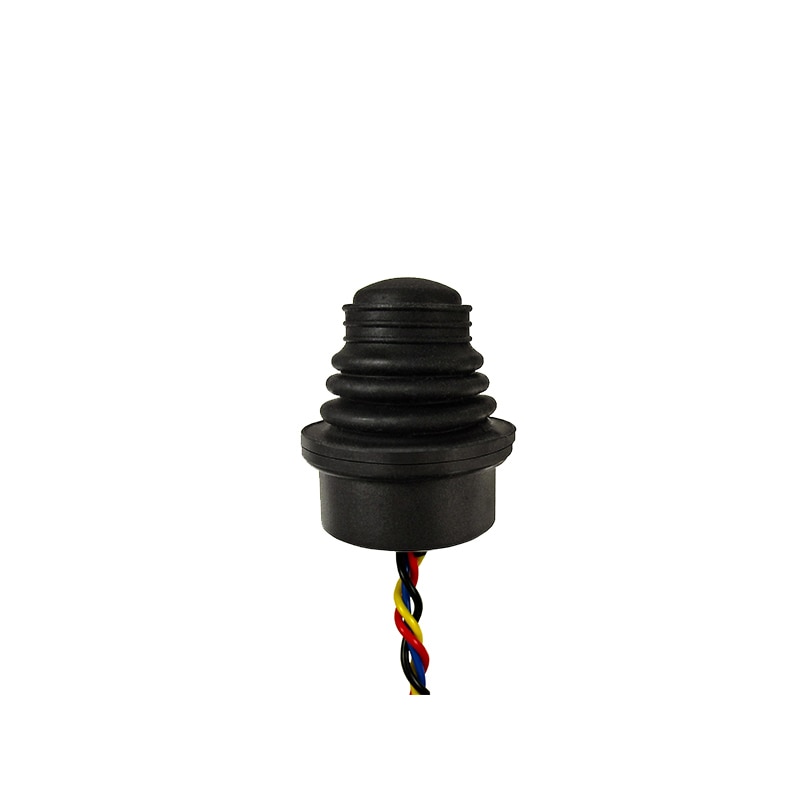

TS6A1S00A
The TS6A1S00A Joystick, with part number TS6A1S00A, is a versatile and high-quality control device that will revolutionize your gaming experience. Its ergonomic design ensures a comfortable grip, allowing you to navigate effortlessly through your favorite games. The joystick's mounting options, including drop-in and rear mount, provide flexibility for seamless integration into various gaming systems. Equipped with a square limiter, this joystick offers precise control and prevents overextension, ensuring smooth and accurate movements. With an output range of 0V to 5V, it guarantees a wide and reliable signal transmission. The joystick also features LED control, allowing you to customize the lighting effects to match your gaming setup. Choose from a variety of LED colors to create a vibrant and personalized atmosphere. Upgrade your gaming experience with the TS6A1S00A Joystick and take your skills to the next level.
Key Features
- Series: TS
- Limiter: Square
- Termination: 22 AWG 25 cm PTFE 2-1
- Handle: Pushbutton1
- Output Options: 0 V to 5 V
- Mounting Options: Drop-in and Rear Mount
- Power Supply Options: Single
Specifications
Distinctive Features:
- Process sealed
- Single piece case
- Front and rear sealing
- Wide variety of contact materials
- Same PCB layout as TL, TP and TG subminiature switches
General Specifications:
- 1 or 2 axis
- USB outputs available
- Non-contact Hall effect technology
- Pushbutton & LED options
- IP67 Above panel sealing
- Redundant outputs available
- Rear or drop-in mounting available
Environmental Specifications:
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Sealing: IP67
- EMC Immunity Level: EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
Electrical Specifications:
- Technology: Hall effect sensors, single or dual
- Supply Voltage Range: 5.00V±0.01V
- Supply current: 11mA max
- Ratiometric output options: see options
- Reverse Polarity Max: -10V
- Transient overvoltage Max: 16V
- Start-up time: 15ms max
- Output Impedance: 2Ω
- Return to Center Voltage Tolerance: ±200mV initial
