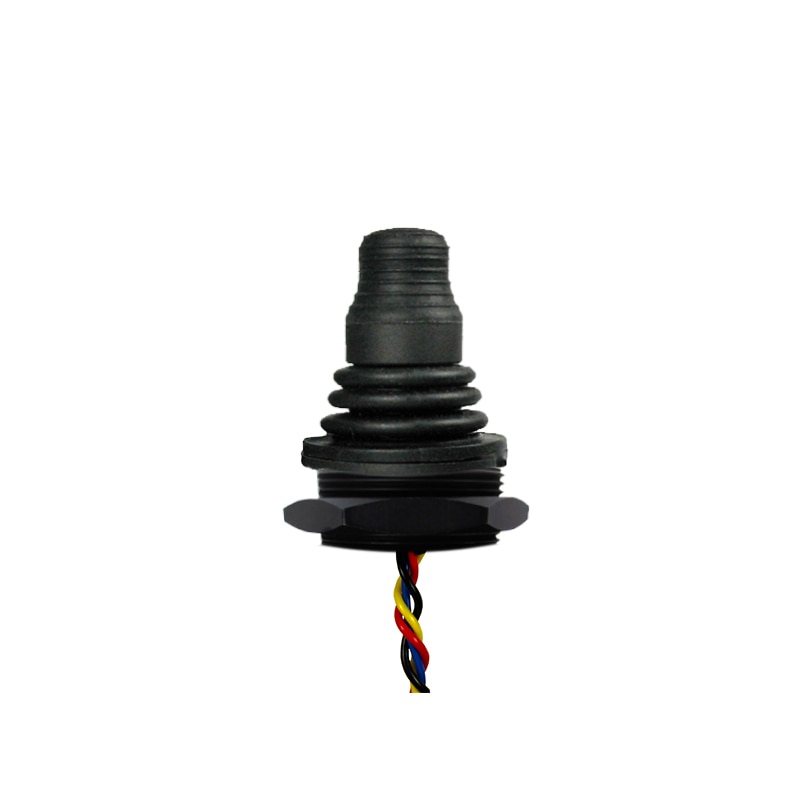

TS4T1S09A
The TS4T1S09A Joystick is designed to provide precise control and ease of use. The handle, or poignée, features a comfortable grip for extended use. The mounting, or montage, is done through a threaded housing made of durable metal for secure installation. The limiter, or limiteur, allows for controlled movement and prevents overextension. The output, or sortie, of the joystick is adjustable from 05 V to 45 V for Sensor 1 and 45 V to 05 V for Sensor 2, providing flexibility in compatibility. The joystick also features LED control, or contrôle LED, allowing users to customize the LED color, or couleur LED, for visual feedback.
Key Features
- Series: TS
- Limiter: Square
- Termination: 22 AWG 25 cm PTFE 2-1
- Handle: Finger Tip
- Output Options: 0.5 V to 4.5 V - Sensor 1 4.5 V to 0.5 V - Sensor 2
- Mounting Options: Threaded housing, Metal
- Power Supply Options: Single
Specifications
Distinctive Features:
- Process sealed
- Single piece case
- Front and rear sealing
- Wide variety of contact materials
- Same PCB layout as TL, TP and TG subminiature switches
General Specifications:
- 1 or 2 axis
- USB outputs available
- Non-contact Hall effect technology
- Pushbutton & LED options
- IP67 Above panel sealing
- Redundant outputs available
- Rear or drop-in mounting available
Environmental Specifications:
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Sealing: IP67
- EMC Immunity Level: EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
Electrical Specifications:
- Technology: Hall effect sensors, single or dual
- Supply Voltage Range: 5.00V±0.01V
- Supply current: 11mA max
- Ratiometric output options: see options
- Reverse Polarity Max: -10V
- Transient overvoltage Max: 16V
- Start-up time: 15ms max
- Output Impedance: 2Ω
- Return to Center Voltage Tolerance: ±200mV initial
