TS1R2S02A

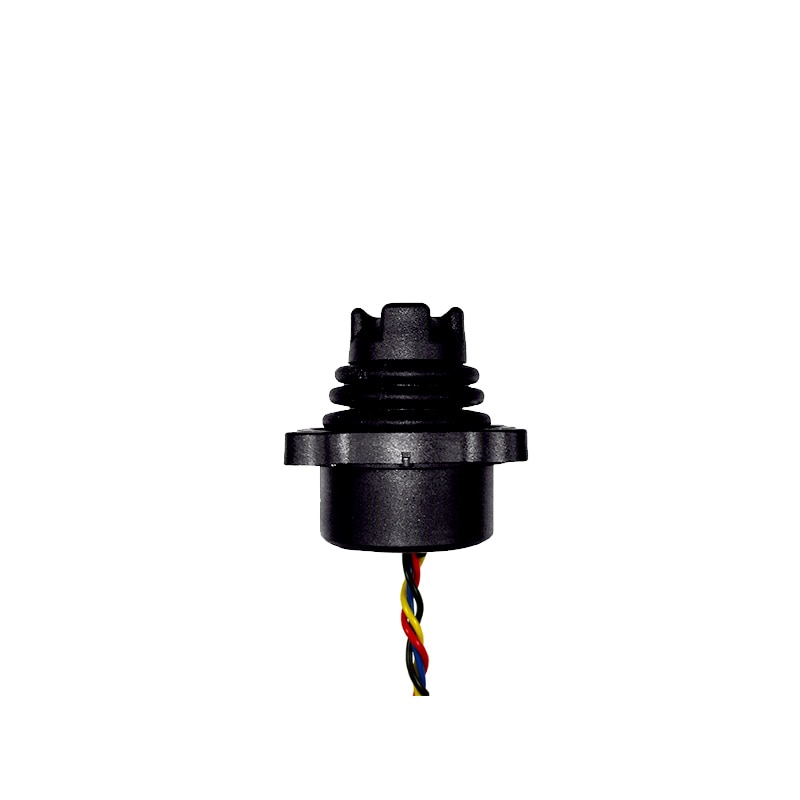

The Castle Joystick, with Part Number TS1R2S02A, is designed for precision control in a variety of applications. Its ergonomic Handle ensures comfortable and easy maneuverability. The Rear mount allows for easy installation and secure attachment. The Square Limiter provides precise movement restriction, allowing for accurate control in any direction. The Output range of 05 V to 45 V ensures compatibility with a wide range of systems. The Joystick also features LED Control and LED Color options, allowing for customizable visual feedback.
Key Features
- Series: TS
- Limiter: Square
- Termination: 28 AWG 25 cm PTFE2-2
- Handle: Castle
- Output Options: 0.5 V to 4.5 V
- Mounting Options: Rear mount
- Power Supply Options: Single
Specifications
Distinctive Features:
- Process sealed
- Single piece case
- Front and rear sealing
- Wide variety of contact materials
- Same PCB layout as TL, TP and TG subminiature switches
General Specifications:
- 1 or 2 axis
- USB outputs available
- Non-contact Hall effect technology
- Pushbutton & LED options
- IP67 Above panel sealing
- Redundant outputs available
- Rear or drop-in mounting available
Environmental Specifications:
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Sealing: IP67
- EMC Immunity Level: EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
Electrical Specifications:
- Technology: Hall effect sensors, single or dual
- Supply Voltage Range: 5.00V±0.01V
- Supply current: 11mA max
- Ratiometric output options: see options
- Reverse Polarity Max: -10V
- Transient overvoltage Max: 16V
- Start-up time: 15ms max
- Output Impedance: 2Ω
- Return to Center Voltage Tolerance: ±200mV initial
