TS1P2S04A

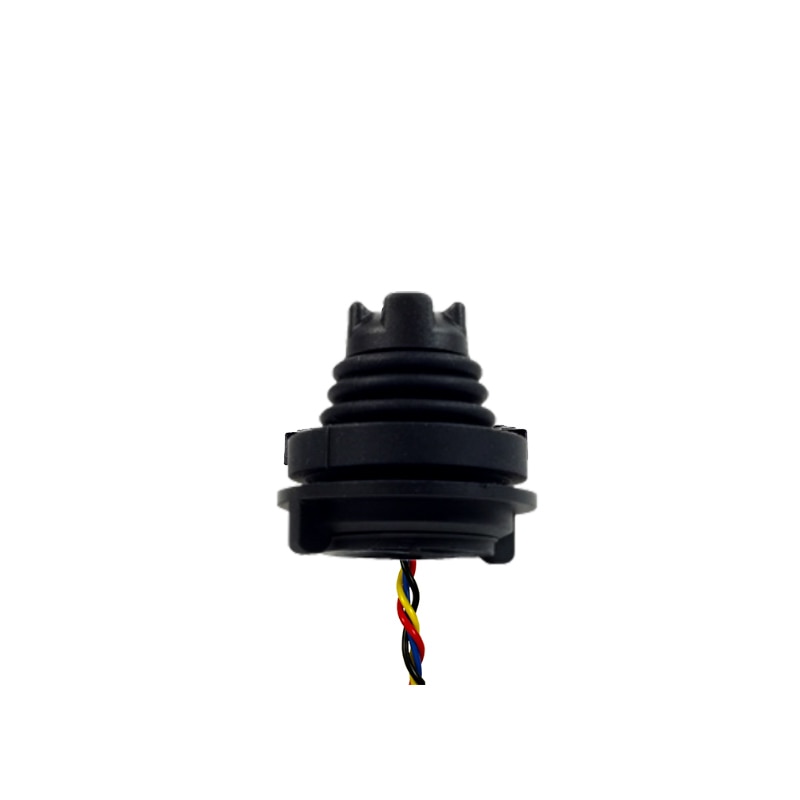

The TS1P2S04A Joystick, also known as the Castle, is a versatile and high-quality handle for various applications. Its threaded housing allows for easy mounting on any compatible surface. With its square limiter, you can precisely control the movement range of the joystick. The output voltage can be adjusted from 0 V to 5 V using the two built-in sensors. Additionally, the TS1P2S04A features LED control, giving you the ability to customize the LED color to suit your preferences.
Key Features
- Series: TS
- Limiter: Square
- Termination: 28 AWG 25 cm PTFE2-2
- Handle: Castle
- Output Options: 0 V to 5 V - Sensor 1 0 V to 5 V - Sensor 2
- Mounting Options: Threaded housing, Plastic
- Power Supply Options: Single
Specifications
Distinctive Features:
- Process sealed
- Single piece case
- Front and rear sealing
- Wide variety of contact materials
- Same PCB layout as TL, TP and TG subminiature switches
General Specifications:
- 1 or 2 axis
- USB outputs available
- Non-contact Hall effect technology
- Pushbutton & LED options
- IP67 Above panel sealing
- Redundant outputs available
- Rear or drop-in mounting available
Environmental Specifications:
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Sealing: IP67
- EMC Immunity Level: EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
Electrical Specifications:
- Technology: Hall effect sensors, single or dual
- Supply Voltage Range: 5.00V±0.01V
- Supply current: 11mA max
- Ratiometric output options: see options
- Reverse Polarity Max: -10V
- Transient overvoltage Max: 16V
- Start-up time: 15ms max
- Output Impedance: 2Ω
- Return to Center Voltage Tolerance: ±200mV initial
