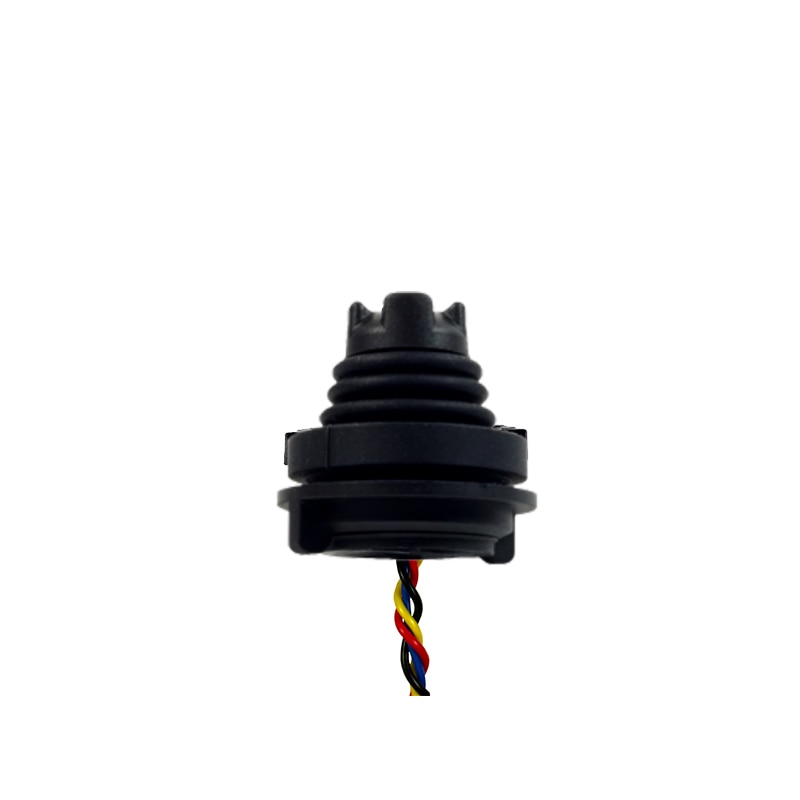

TS1P1U00A
Introducing the TS1P1U00A Joystick, also known as the Castle. This joystick is designed for precision and comfort, making it the perfect choice for gamers and professionals alike. The handle, or poignée in French, Handgriff in German, and 控制杆 in Chinese, provides a comfortable grip, allowing for hours of uninterrupted gameplay or work. The threaded housing plastic, or montage in French, Montageart in German, and 安装 in Chinese, ensures a secure and stable mounting, preventing any unwanted movement. The single axis limiter, or limiteur in French, Limiter in German, and 限制器 in Chinese, allows for precise control and movement restriction. The output, or sortie in French, Ausgang in German, and 输出 in Chinese, ranges from 0 V to 5 V, providing a wide range of compatibility with various devices. The joystick also features LED control, or contrôle LED in French, Led-Steuerung in German, and LED控制 in Chinese, allowing for customizable lighting options. However, the joystick comes without illumination, or couleur LED in French, LED-Farbe in German, and LED颜色 in Chinese, providing a sleek and minimalist design.
Key Features
- Series: TS
- Limiter: Single axis
- Termination: 22 AWG 25 cm PTFE 2-1
- Handle: Castle
- Output Options: 0 V to 5 V
- Mounting Options: Threaded housing, Plastic
- Power Supply Options: Single
Specifications
Distinctive Features:
- Process sealed
- Single piece case
- Front and rear sealing
- Wide variety of contact materials
- Same PCB layout as TL, TP and TG subminiature switches
General Specifications:
- 1 or 2 axis
- USB outputs available
- Non-contact Hall effect technology
- Pushbutton & LED options
- IP67 Above panel sealing
- Redundant outputs available
- Rear or drop-in mounting available
Environmental Specifications:
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Sealing: IP67
- EMC Immunity Level: EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
Electrical Specifications:
- Technology: Hall effect sensors, single or dual
- Supply Voltage Range: 5.00V±0.01V
- Supply current: 11mA max
- Ratiometric output options: see options
- Reverse Polarity Max: -10V
- Transient overvoltage Max: 16V
- Start-up time: 15ms max
- Output Impedance: 2Ω
- Return to Center Voltage Tolerance: ±200mV initial
