11136AD2GK-26

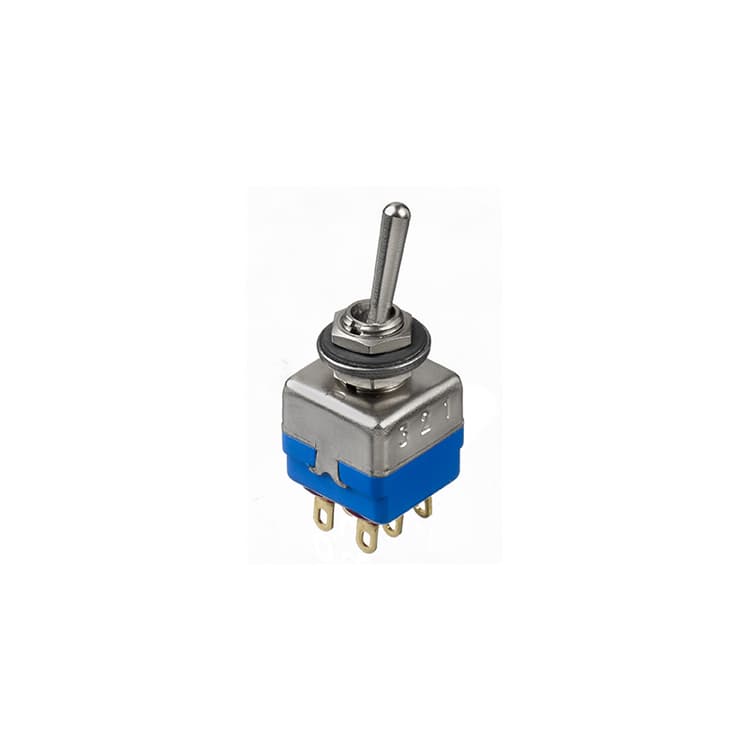

The 11136AD2GK-26 Panel Switch is a versatile toggle switch that is perfect for a variety of electrical applications. With its single pole design, it provides reliable and efficient electrical functions. The switch features a cylindrical lever for easy operation and is built to withstand the rigors of everyday use. Whether you need to control lighting, motors, or other electrical components, the 11136AD2GK-26 Panel Switch is a reliable and durable choice.
Key Features
- Number Of Poles: Single Pole
- Electrical Functions: ON ON
- Mounting: Solder Lug or Straight PC
- Contact Materials: Silver (Gold-Plated)
- Finish: Black Finish On Bushing Actuator and Hardware
- Levers: Cylindrical
- Sealing: Front Panel Sealing with One O-Ring and Sealing Washer
- Terminals And Bushing: Solder Lug or Right Angle
- Special Options: No Special Requirement
Specifications
Distinctive Features:
- CECC approved
- Robust switches for high specification environments
- Toggle action on 2-position models for a smooth
- mechanical operation
- Several front panel sealing options
General Specifications:
- Torque:1.25 Nm (.92 Ft.lb) max. applied between the 2 nuts
- Standard panel thickness: 2.5 mm (.098) max.
Environmental Specifications:
- Operating temperature: -40 °C to +85 °C (-40 °F to 185 °F)
Electrical Specifications:
- Max. current/voltage rating with resistive load: - silver contacts (A-AD2-X780): 4 A 30 VDC- gold contacts (D): 100 mA 30 VDC
- Minimum load: AD2-X780-D contacts: 10 mA 50 mV, 10 µA 5 V min.
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength:1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame
- Contact bounce: 2 ms max
